THE ALL-NEW MAKERBOT REPLICATOR MINI+

Simple, Accessible, and Reliable Desktop 3D Printing

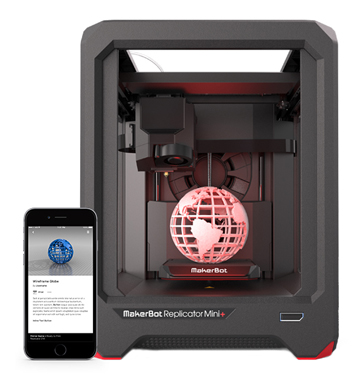

MAKERBOT REPLICATOR MINI+

$2,288 RRP EX GST

Get a Quote

COMBINES WITH POWERFUL WORKFLOW TOOLS TO STREAMLINE THE 3D PRINTING PROCESS

To ensure easy, accessible 3D printing, the MakerBot Replicator+ comes with the Smart Extruder+ and all the standard features of its predecessor. A few of those features include an LCD display, an on-board camera, as well as USB, Wi-Fi, and Ethernet connectivity.







STANDARDIZED FEATURES FOR EASY 3D PRINTING

To ensure easy, accessible 3D printing, the MakerBot Replicator Mini+ comes with the Smart Extruder+ and all the standard features such as an on-board camera, as well as connectivity via Wi-Fi and USB cable.

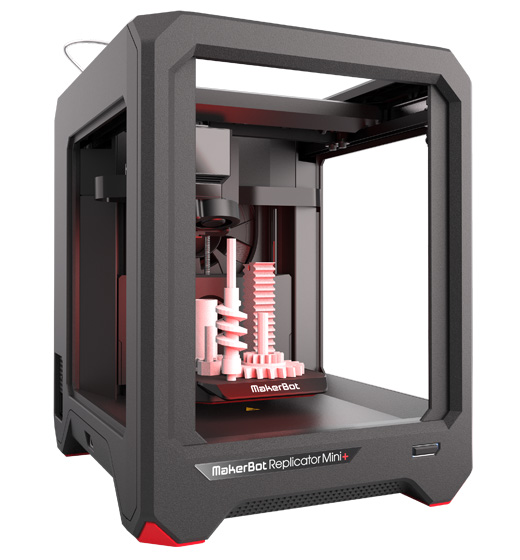

ENGINEERED FOR RELIABLE, FASTER PRINTING AND BACKED BY EXTENSIVE TESTING

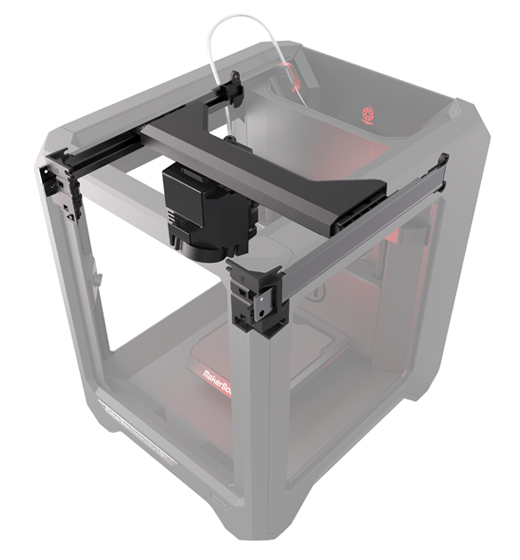

The MakerBot Replicator Mini+ prints 10% faster than its predecessor and offers a 28% larger build volume. For greater reliability and precision, it features improved hardware, like a redesigned Z-stage and refined gantry.

To ensure consistent performance, our new 3D printers and their subsystems were re-engineered and rigorously tested for 380,000+ hours across multiple facilities.

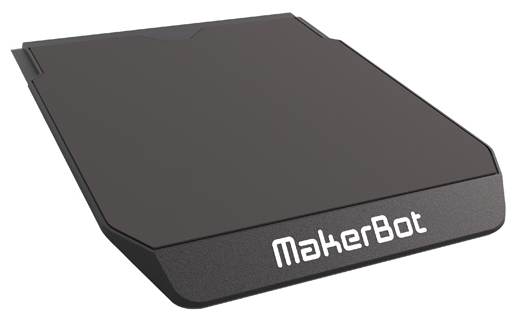

GRIP SURFACE AND FACTORY LEVELED

With the new Grip Surface, prints adhere better, resulting in reduced warping and curling. And guess what? No more blue tape. The build plate is also factory-leveled so your Replicator Mini+ is ready to go right out of the box.

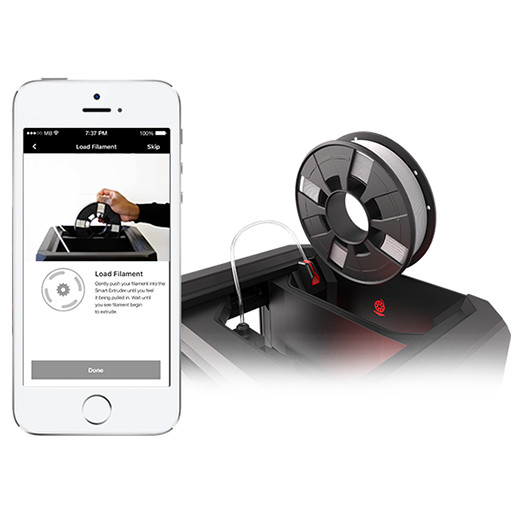

MAKERBOT MOBILE APP

Get up and running quickly with the easy, guided wireless setup through MakerBot Mobile. Once you’re ready, you can monitor and control your print jobs even when you’re away via the 3D printer’s on-board camera.


MORE FEATURES

MUCH QUIETER PRINTING

The MakerBot Replicator Mini+ is 58% quieter when printing, allowing for a more focused environment.

ADVANCED SOFTWARE

Control multiple printers from MakerBot Print so you can print on multiple build plates sequentially or simultaneously. Store, organize, and access 3D design files in your personal Cloud-enabled library. MakerBot Print is free downloadable software that’s compatible with Mac, and Windows computers.

PLA FILAMENT

Safe for the classroom, office, or home, this filament is non-toxic and easy-to-print with minimal warping or curling. It’s also the best, most consistent filament for the MakerBot Replicator Mini+

TECHNICAL SPECIFICATIONS

PRINTING

Print Technology
Fused Deposition Modeling

Build Volume
10.1 L X 12.6 W X 12.6 H CM
1,603 Cubic Centimeters

Layer Resolution
100 microns

Filament Diameter
1.75 mm

Filament Compatibility
MakerBot PLA Filament
Small Spool

Nozzle Diameter
0.4 MM

Print File Type
.MAKERBOT


TEMPERATURE

Ambient Operating Temperature
15­-26°C

Storage Temperature
0­-38°C

SIZE & WEIGHT

Product Dimensions
29.5 L X 34.9 W X 38.1 H CM

Shipping Box
40 L X 45.4 W X 52.2 H CM

Product Weight
9.3 KG

Shipping Weight
(Includes Accessory Kit)
12.13 KG


MECHANICAL

Construction
PC ABS with Powder-Coated Steel Reinforcement

Build Surface
Grip Surface

Stepper Motors
1.8° step angle with 1/16 micro-stepping

XY Positioning Precision
11 Microns

Z Positioning Precision 2.5 Microns

SOFTWARE

Software Bundle
MakerBot Print,
MakerBot Mobile

Supported File Types
STL, OBJ

Operating Systems
Windows (7, 10)
Mac OS X (10.9+)


ELECTRICAL

Power Requirements
100-­240 V; 0.76-0.43 A
50-60 HZ

Connectivity
WI-FI, USB,


CAMERA

Camera Resolution
640 x 480
